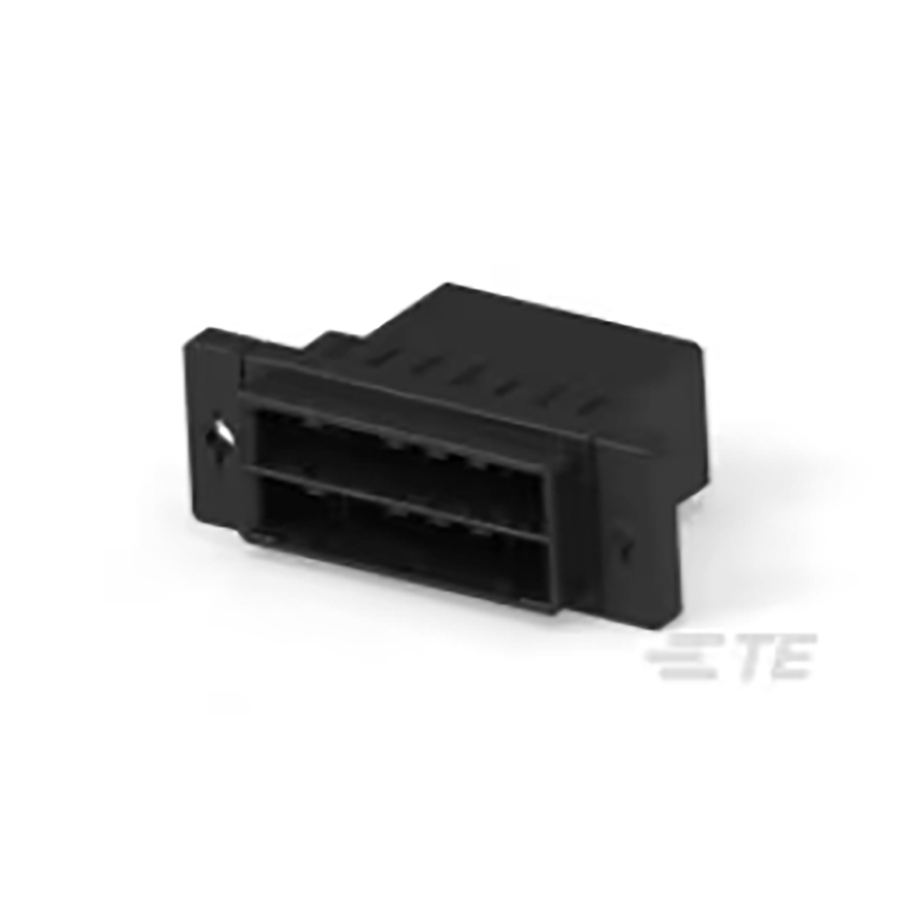

1-179555-6
Manufacturer:
TE Connectivity
Mfr.Part #:
1-179555-6
Datasheet:
Description:
Headers and Wire Housings Panel Plug, Tab Number of Positions:12 Pitch:5.08 mm
| Parameter | Value |
|---|---|
| Length | 57.8866 mm |
| Width | 20.32 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Height | 33.6 mm |
| Packaging | Bulk |
| Depth | 33.6 mm |
| Halogen Free | Halogen Free |
| RoHS | Compliant |
| Pitch | 5.08 mm |
| Flammability Rating | UL94 V-0 |
| Approvals | UL |
| Orientation | Straight |
| Operating Supply Voltage | 600 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Black |
| Gender | Male |
| Number of Contacts | 12 |
| ELV | Compliant |
| Connector Type | Plug, Tab |
| Wire/Cable Gauge | 16 AWG |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Row Spacing | 7.62 mm |
| Housing Material | Nylon |
| Max Voltage Rating (AC) | 600 V |
| Housing Color | Black |
| VDE Tested | No |
| Preloaded | No |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
Stock: 2641
Distributors
pcbx
pcbxUnit Price$0.81418
Ext.Price$0.81418
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.81418 | $0.81418 |
| 10 | $0.73699 | $7.36990 |
| 25 | $0.70839 | $17.70975 |
| 50 | $0.68090 | $34.04500 |
| 100 | $0.65446 | $65.44600 |
| 300 | $0.64365 | $193.09500 |
| 500 | $0.63302 | $316.51000 |
| 1000 | $0.62390 | $623.90000 |
